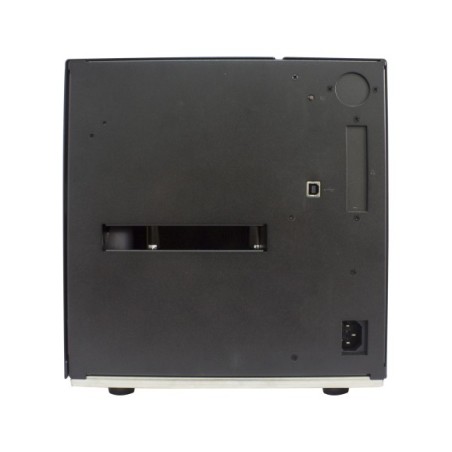

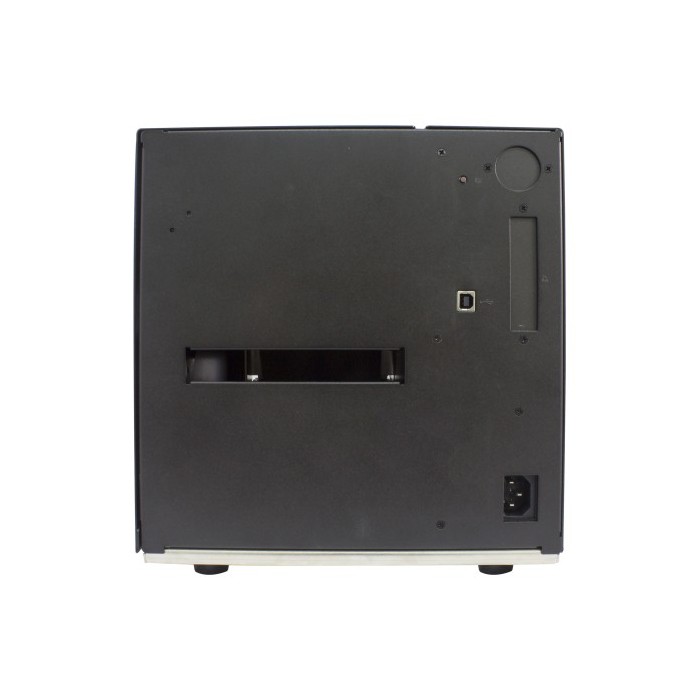

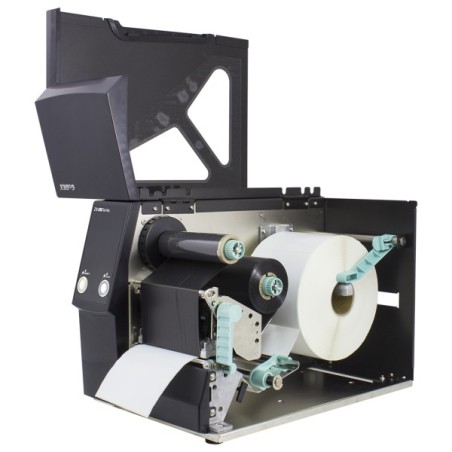

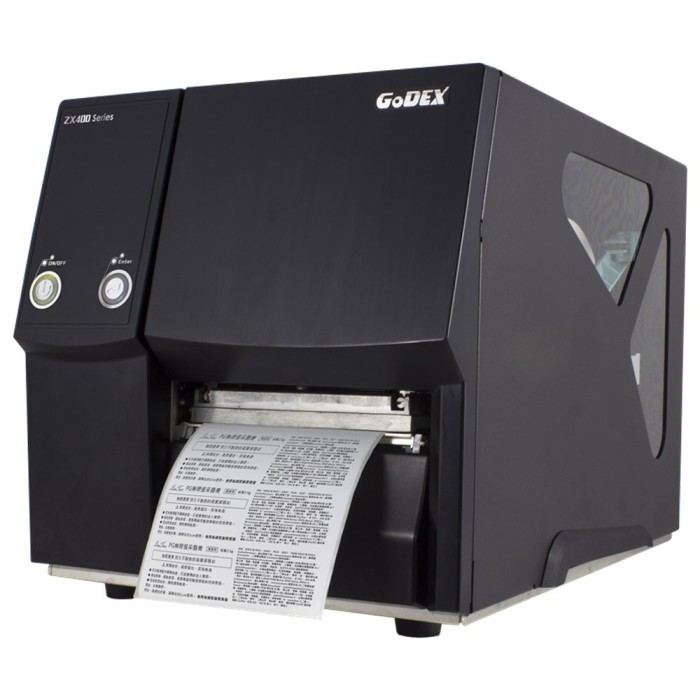

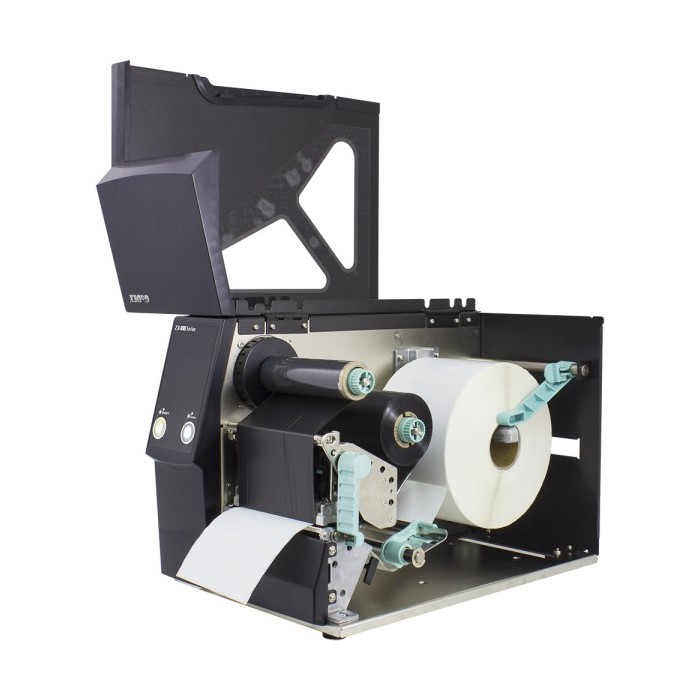

Godex ZX430 Pro label printer
Small in size and powerful in performance
Upgraded Flash and SDRAM enable the ZX400i Pro series to withstand more difficult printing conditions. Multiple interfaces and optional WiFi & Bluetooth connections make the ZX400i Pro suitable for most application environments.
ZX430 Pro
€1,125.00
Tax included
| Feature | Value |
|---|---|
| Print Method | Direct Thermal/Direct Trermal |
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 4 ips (102 mm/s)) |
| Print Width | Up to 4.16” (105.7 mm) |
| Print Length | Min. 0.12” (3 mm)**; Max. 350“ (8,89 m)) |
| Media Types | Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming |
| Media Thickness | From 0.003 inches (0.08 mm) to 0.004 inches (0.10 mm) |
| Label Roll Diameter | Max. 8” (203.2 mm) with 3″ (76.2 mm) core Max. 6” (152.4 mm) with 1.5″ (38.1 mm) core Max. 5″ (127 mm) with 1″ (25.4 mm) core |
| Core Diameter | Min. 1 ” (25.4 mm) – Max. 3″ (76.2 mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash : 16 GB / SDRAM : 512 MB |
| Printer Language | EZPL, GEPL, GZPL, GDPL (auto switch) |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30 pt, OCR A & B; Bitmap fonts scalable up to 8×; TrueType fonts (Bold / Italic / Underline); Asian fonts: Traditional Chinese, Simplified Chinese, Japanese, Korean |
| Barcodes | 1D: Code 39, Code 93, Code 128, EAN-8 / EAN-13, UPC-A / UPC-E, GS1 DataBar, and more; 2D: QR Code, DataMatrix, PDF417, Aztec, MaxiCode, Micro QR, GS1 Composite |
| Interfaces | USB 2.0 (Type B), USB Host (A-Type) |
| Control Panel | 1 Power on/standby button with green color LED backlight • 1 Calibration button at rear panel • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) |
| Power | Auto switching 100–240V AC, 50–60 Hz |
| Environment | Operating: 5 °C to 40 °C; Storage: -20 °C to 50 °C |
| Humidity | Operating: 30%–85% non-condensing; Storage: 10%–90% non-condensing |
| Dimensions | 403 × 274 × 260 mm |
| Weight | 10.8 kg |
| Certifications | CE (EMC), FCC Class B, CB, UL, cUL, CCC, BSMI, UKCA |
| Warranty | 5-year limited warranty |
Data sheet
- Manufacturer
- GoDEX
- Device
- Printer
- Brand
- GoDEX
- Type printer
- Desktop Printers
- Type printer
- Labeling
- Body color
- Black
- Screen
- No
