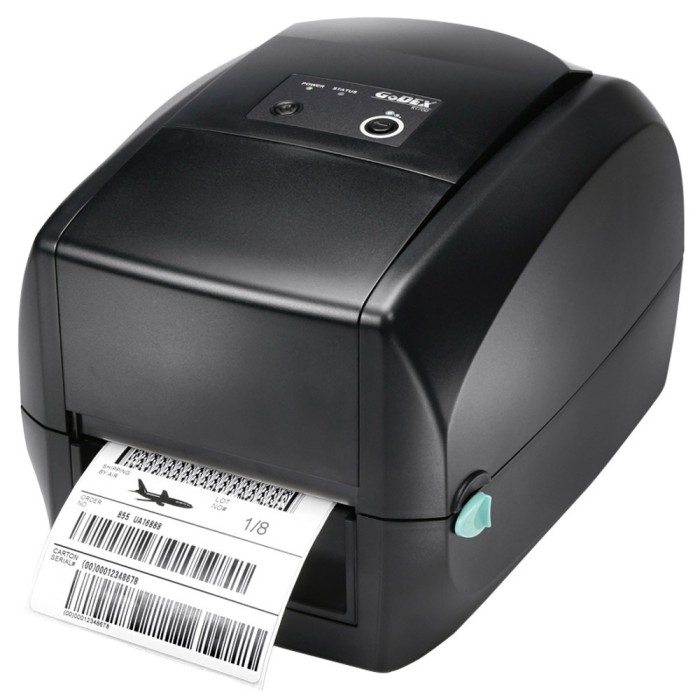

Godex RT730 label printer

Advanced multi-purpose 4” desktop printer for light to medium duty applications.

Medium duty applications. With its powerful and reliable features, RT730 is the best choice for retail and industrial applications.

Reference GP-RT730

€729.85

Tax included

Quantity

Description
Product Details

Feature	Value
Print Method	Thermal Transfer / Direct Thermal
Resolution	300 dpi (12 dots/mm)
Print Speed	4 IPS (102 mm/s)**
Print Width	4.16" (105.7 mm)
Print Length	Min. 0.16" (4 mm)** Max. 30" (762 mm)
Processor	32 Bit RISC CPU
Memory	8MB Flash (4MB for user storage); 16MB SDRAM
Sensor Type	Adjustable reflective sensor (full range). Fixed transmissive sensor, central aligned
Media Types	Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Media Width	0.79” (20 mm) Min. - 4.65” (118 mm) Max.
Media Thickness	Min. 0.0024” (0.06 mm) – Max. 0.01” (0.25 mm)
Label Roll Diameter	Max. 5” (127 mm)
Core Diameter	1” (25.4 mm), 1.5” (38.1 mm)
Ribbon Types	Wax, wax / resin, resin
Ribbon Length	984’ (300 m)
Ribbon Width	Min. 1.18” (30 mm) – Max. 4.33” (110 mm)
Ribbon Roll Diameter	2.67” (68 mm)
Ribbon Core Diameter	1” (25.4 mm)
Printer Language	EZPL, GEPL, GZPL, GDPL auto switch
Label Design Software	GoLabel II (for EZPL only) (Windows)
Management Tools	GoTools (Windows / Android), GoUtility (Windows)
Satin Ribbon Printing Tool	GoRibbon (Windows)
Driver	Windows 7, Windows 8 & 8.1, Windows 10, Windows 11, Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022, MAC, Linux
SDK	Win CE, .NET, Windows 7, Windows 8 & 8.1, Windows 10, Windows 11, Android, Mac, iOS
Resident Fonts	Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B; 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable; 8 times expandable in horizontal and vertical directions; TTF Fonts: (Bold / Italic / Underline) 0°,90°, 180°, 270° rotatable
Download Fonts	Bitmap fonts: 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable; Asian fonts: 16x16, 24x24 Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese(S-JIS), Korean (KS-X1001); 0°, 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions; TTF fonts: (Bold / Italic / Underline) 0°,90°, 180°, 270° rotatable
Barcodes 1-D Bar codes	China Postal Code, Codabar, Code 11, Code 32, Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5, Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of 5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart and Random Weight and Pharmacode
Barcodes 2-D Bar codes	Aztec code, Code 49, Codablock F, Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417, QR code, TLC 39, GS1 Composite, DotCode, Marco PDF 417
Code Pages	Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869; Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257; Unicode UTF8, UTF16BE, UTF16LE
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

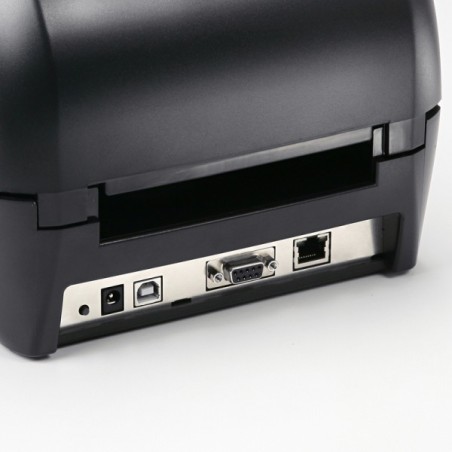

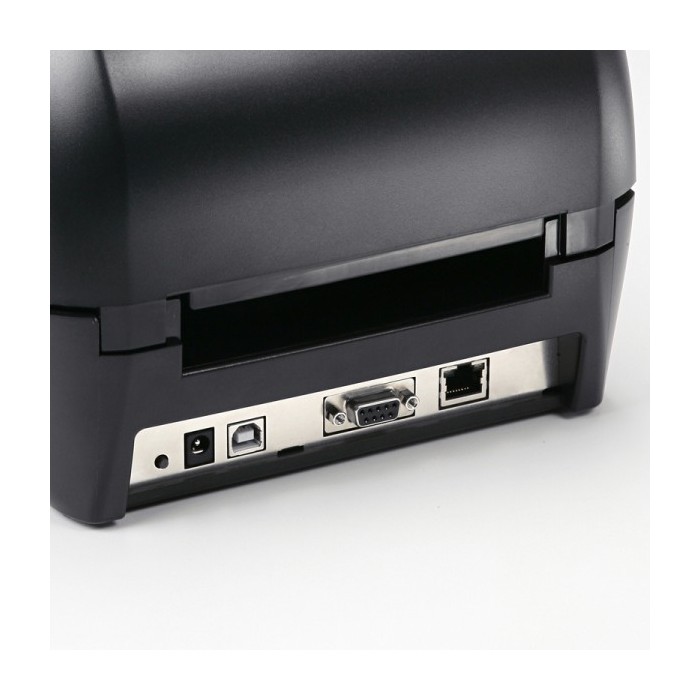

Interfaces	USB 2.0 (Type B); Serial port (RS232); Ethernet 10/100 Mbps
Control Panel	Two dual color LEDs (Ready & Status); Calibration button; Control key: FEED; Power on / off button
Real Time Clock	Standard
Power	External auto switching power supply; Input: AC 100-240V, 50-60Hz; Output: DC 24V, 2.5A
Environment Operation temperature	41°F to 104°F (5°C to 40°C)
Environment Storage temperature	-4°F to 122°F (-20°C to 50°C)
Humidity Operation	30-85%, non-condensing
Humidity Storage	10-90%, non-condensing
Agency Approvals	CE(EMC), FCC Class A, CB, cULus, CCC, BIS, UKCA, ICES-003, KC, ENERGY STAR
Dimension	Length: 280 mm (11.0”); Width: 215 mm (8.46”); Height: 187 mm (7.36”)
Weight	2.4 kg (5.29 lbs), excluding consumables
Options	Cutter; Label Dispenser; External label roll holder for 10” (250 mm) O.D. label rolls; External label rewinder
Warranty	3-year limited warranty
