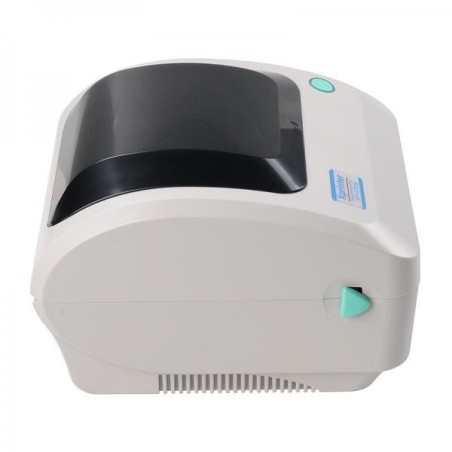

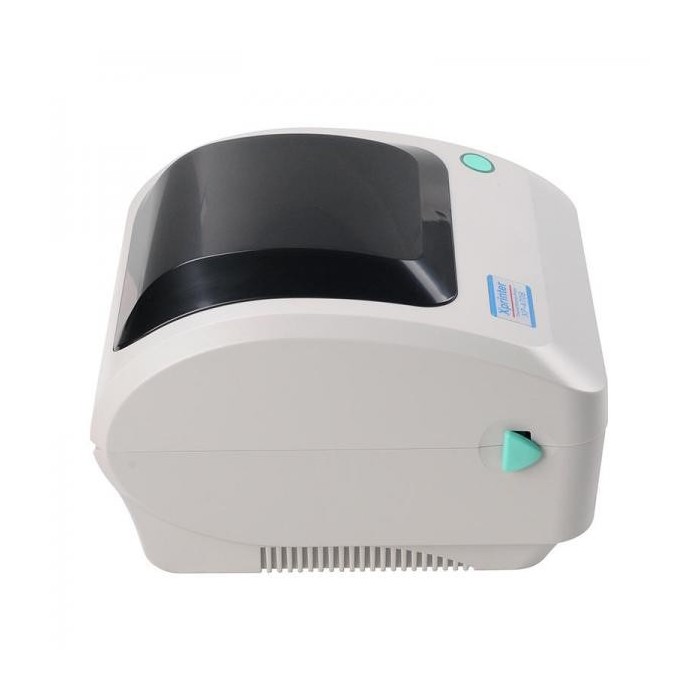

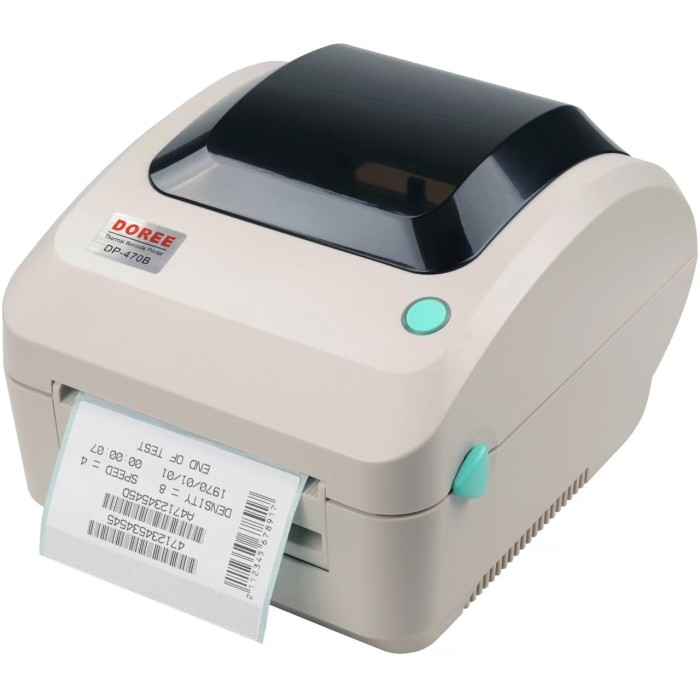

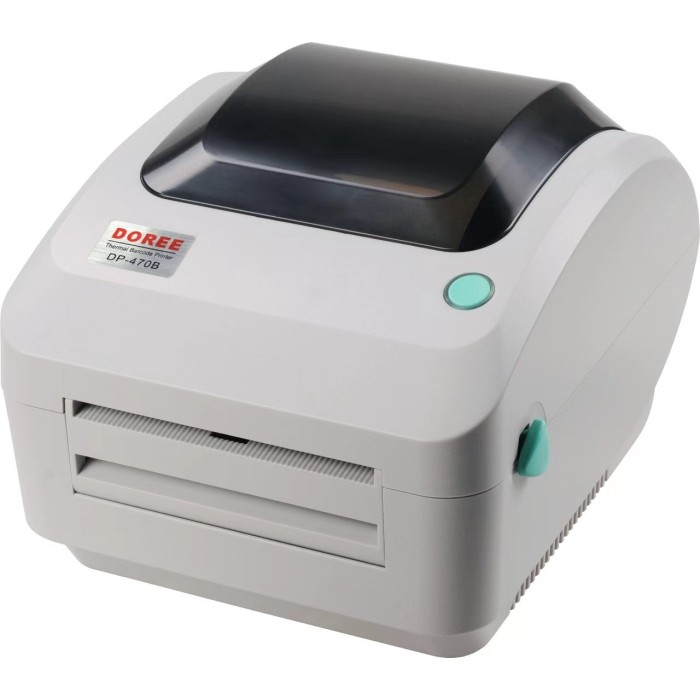

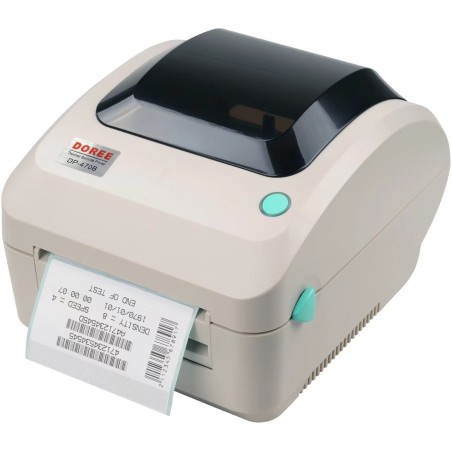

Dore DP-470B DP470B label printer

LP-XP-470B-printer
€139.00
Tax included
Quantity

Resolution: 8 dots/mm (203 DPI)

Printing Method: Direct Thermal

Max. Print Speed: 127 mm (5") / s

Max. Print Width: 108 mm (4.25")

Max. Print Length: 2286 mm (90")

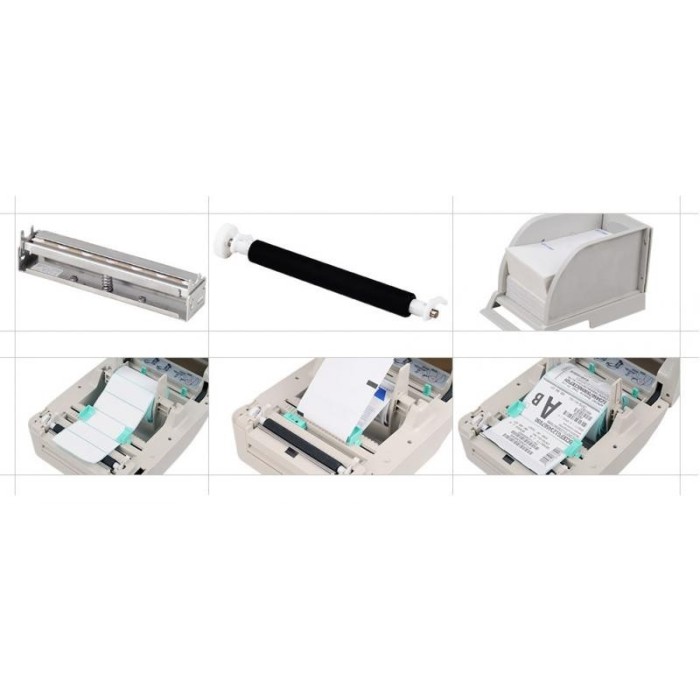

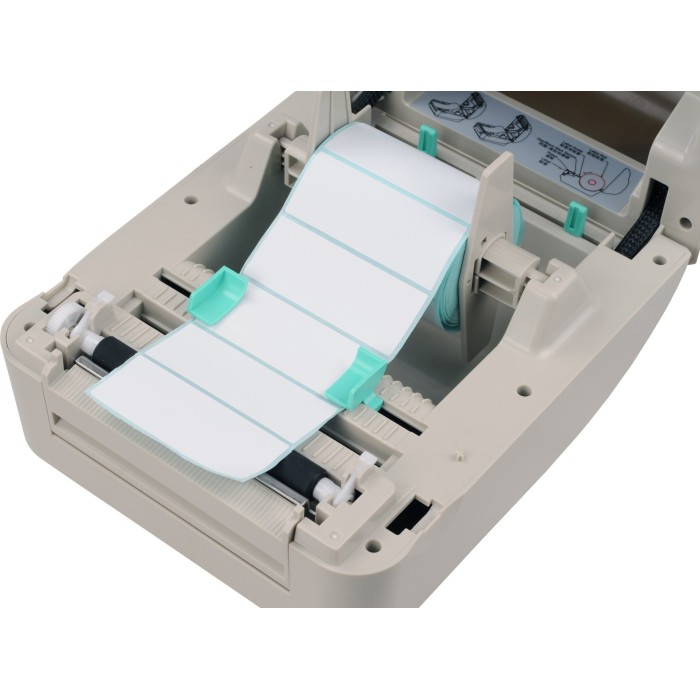

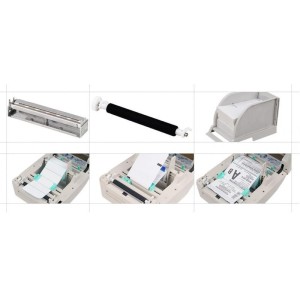

Media Type: Continous, gap, black mark, fan-fold and punched hole

Media Width: 20-112mm (0.78”-4.4”)

Media Thickness: 0.06 - 0.16 mm (2.36 - 6.3 mil)

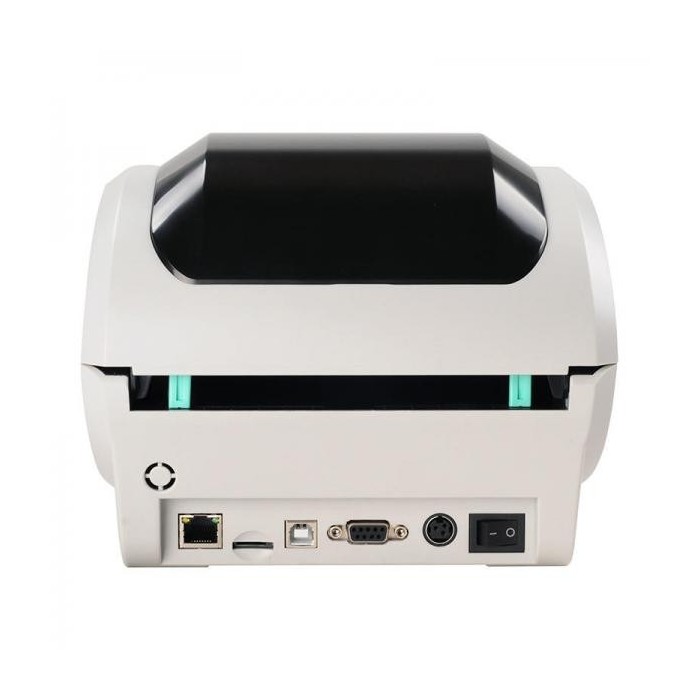

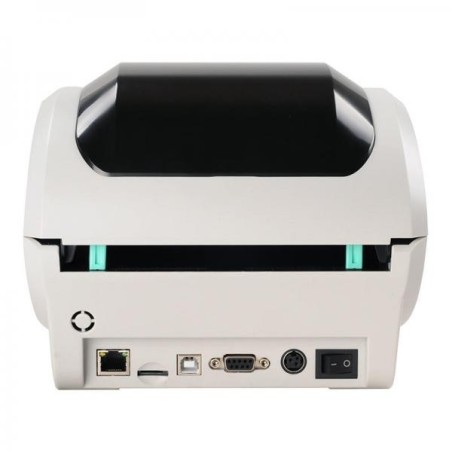

Interface: USB 2.0

Label Length: 10~2,286mm (0.4”~90”)

Label Roll Capacity: 127 mm (5") OD (outside wound)

Application: Double-walled plastic

Physical Dimensions: 240 mm (W) x 211 mm (H) x 166 mm (D)

Weight: 2.15kg

Processor: 32-bit RISC CPU

Memory: 4MB Flash Memory, 8MB SDRAM, SD card reader for Flash memory expansion up to 4GB

Power: External universal switching power supply

Input: AC 100-240V, 2.5A, 50-60Hz

Output: DC 24V, 2.5A, 60W

Sensor: Black mark reflective sensor (position adjustable), Head open sensor, Transmissive gap sensor

Internal Fonts: 8-alpha-numeric bitmap fonts, Windows fonts are downloadable from software

Data sheet

Manufacturer
Dore
Device
Printer
Brand
Dore
Set
No
Text color
Black
Print technology
Direct Thermal
Length, mm
211
Type printer
Desktop Printers
Type printer
Labeling
Wi-Fi
No
Keyboard
No
Case
No
Power supply
Power adapter
Housing material
Plastic
Height, mm
166
Body color
Black
Body color
White
Screen
No
Printing language
Any
Width (mm)
240
Print resolution (maximum)
300 dpi
Supports operating systems
Windows XP
Supports operating systems
Windows 10
Supports operating systems
Windows 11
Supports operating systems
Windows 7
Supports operating systems
Windows 8
Supports operating systems
Windows 8.1
Supports operating systems
Windows Vista
Supports operating systems
macOS
Printing speed (mm/s)
127
Barcodes
Code 39
Barcodes
Code 128 (subset A B C)
Barcodes
China Postal Code
Barcodes
Codabar
Barcodes
Code 93
Barcodes
EAN-8/EAN-13 (with 2 & 5digits extension)
Barcodes
EAN 128
Barcodes
FIM
Barcodes
Interleaved 2-of-5 (I 2 of 5)
Barcodes
MSI
Barcodes
Postnet
Barcodes
MaxiCode
